101022 – Waffle Maker – Twin Square Pattern

Description

Model Number: WB-S

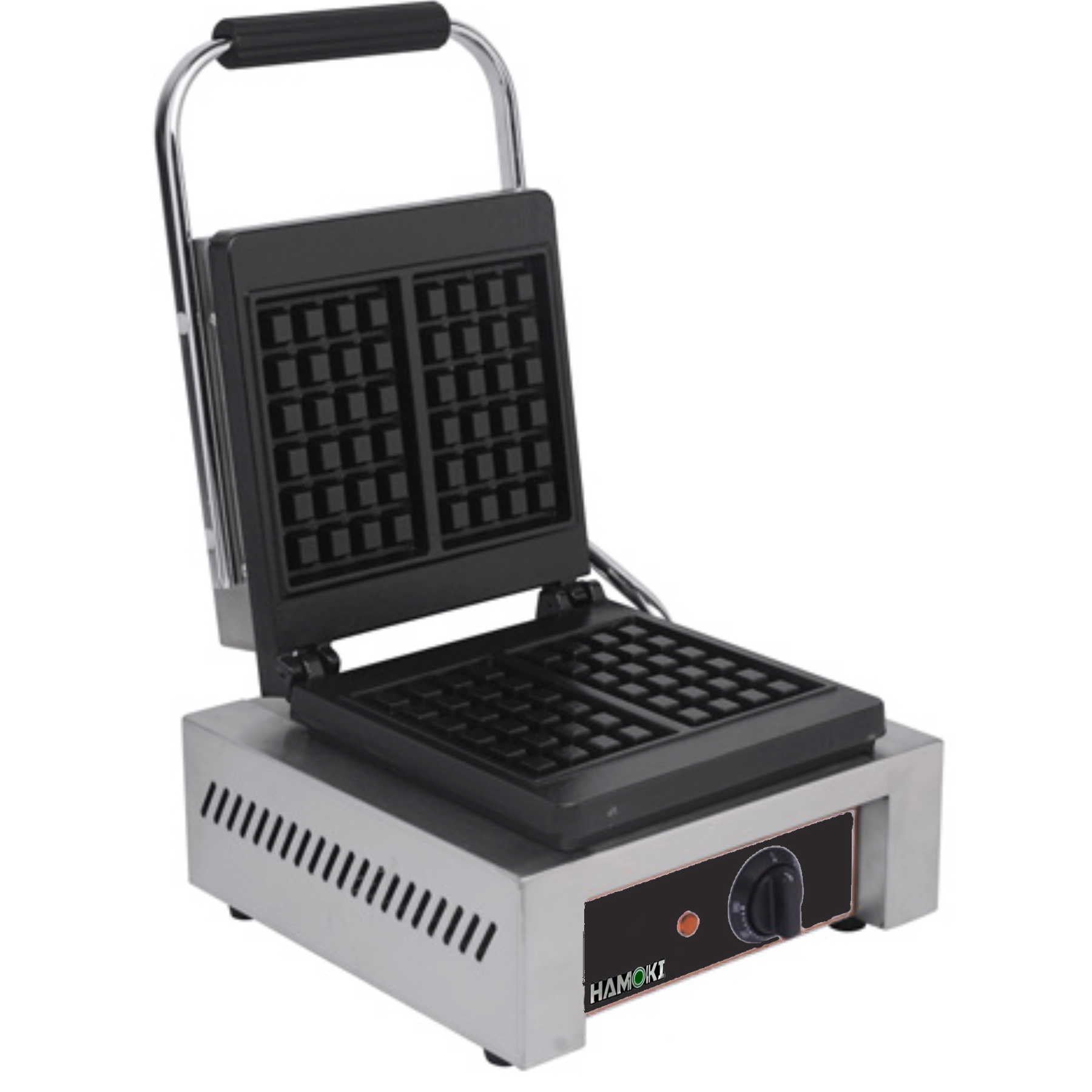

The Hamoki Twin Square Waffle Maker is perfectly suited for use in ice cream parlours, mobile catering outlets, convenience shops and other food establishments, easily producing up to 30 crisp cone waffles every hour.

Designed for simplicity and efficiency, our waffle maker features a user-friendly interface, allowing you to pour in the batter, close the lid, and let the magic happen. The non-stick cooking surface ensures that each cone is golden brown and effortlessly releases from the machine. Compact and easy to store, this waffle maker is ideal for small kitchens or those with limited countertop space.

• Cast iron plate with ceramic coating
• Designed to produce two pieces of 4×6 square pattern waffles
• An output of 30 Belgian waffles in one hour
• Stainless-steel structure
• Temperature range is 50-320°C
• Waffle thickness up to 1.2 inches
• Top plate opens up to 90 °C
• EGO thermostat
• Stainless-steel heating element on both sides
• Hi-limit for safety of electrical components
• Cast iron plate to hold heat longer
• Anti-slippery rubber foot
• Removable stainless-steel crumb collector
• Waffle fork for easy handling of the cooked waffles
• Bakelite handles for frame, cool to touch

This product is covered with a Manufacturer’s 1 Years Parts Warranty.

Please note, that with ongoing enhancements and improvements, this product may vary slightly from the content displayed.

DIMENSIONS: 470 x 320 x 225 mm
DIAMETER: 400 x 600 mm
WEIGHT: 17 KG
POWER: 1.5 KW / 240 V 50 Hz

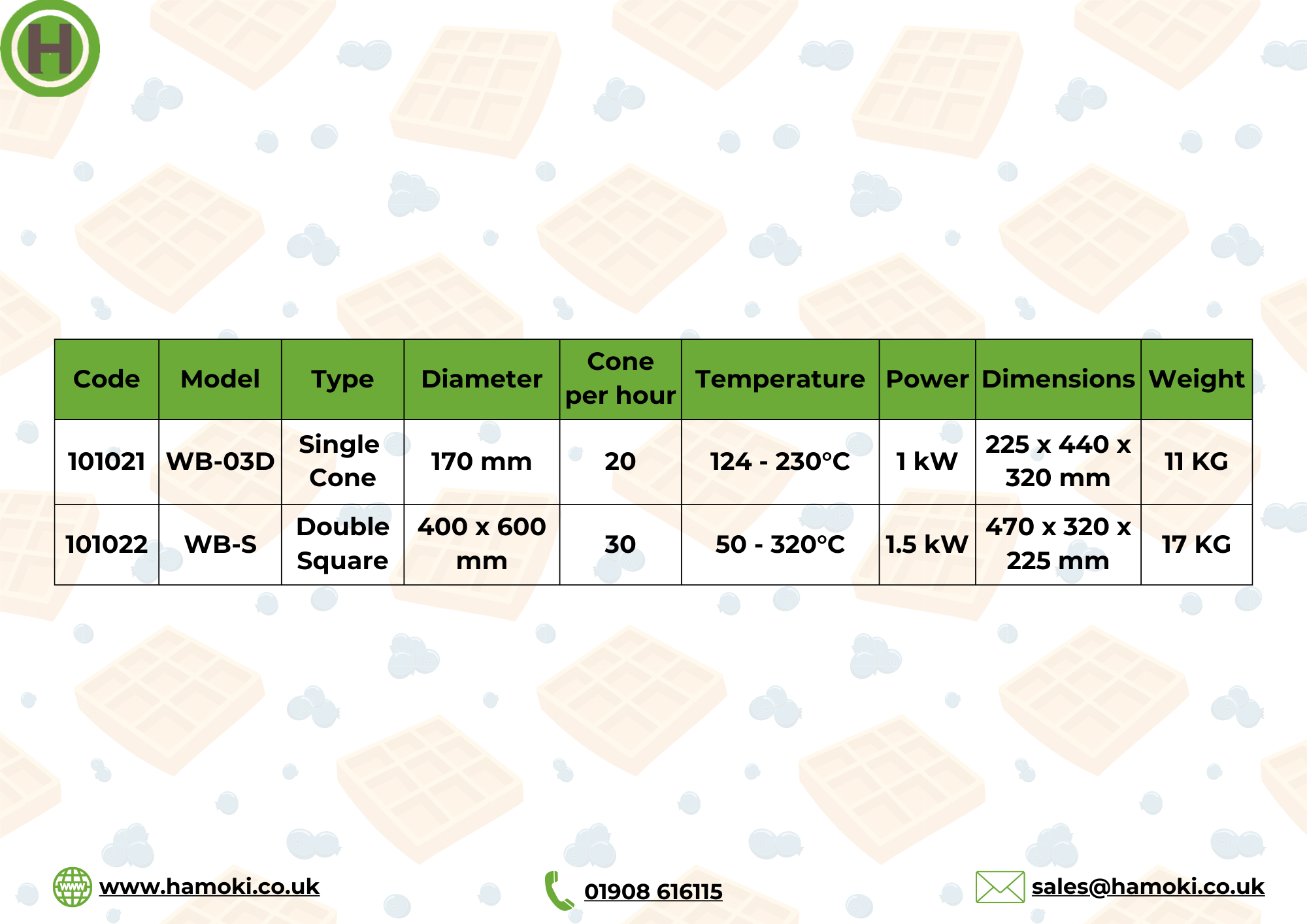

TECH SHEET
EXPLODING DRAWING
WIRING DIAGRAM
